Závěsné oko, typ MT
Kód: 54Detailní popis produktu

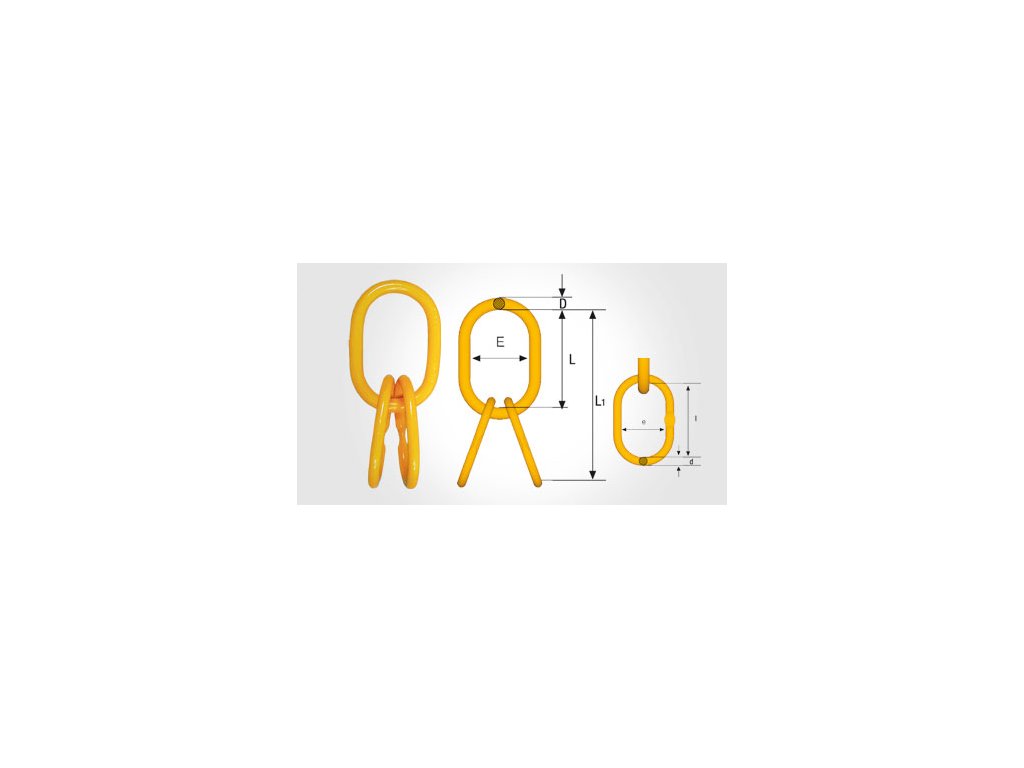

| Označení | WLL | Pro tloušťku řetězu mm | Rozměry v mm | Hmotnost cca. | ||||||
| t | 3/4 prameny | L1 | L | E | D | l | e | d | kg | |
| MT-6-10 | 3,5 | 6 | 270 | 150 | 90 | 19 | 120 | 70 | 14 | 1,932 |
| MT-8-10 | 5,2 | 7, 8 | 300 | 160 | 95 | 22 | 140 | 80 | 17 | 3,028 |
| MT-9-10 | 6,9 | 9 | 340 | 190 | 110 | 28 | 150 | 90 | 19 | 4,887 |
| MT-10-10 | 11,5 | 10 | 360 | 200 | 120 | 30 | 160 | 95 | 22 | 6,332 |
| MT-13-10 | 17 | 13 | 440 | 250 | 150 | 40 | 200 | 110 | 28 | 14,594 |
| MT-16-10 | 28 | 16 | 500 | 300 | 200 | 50 | 200 | 120 | 32 | 22,783 |
| MT-20-10 | 35 | 19, 20 | 550 | 300 | 200 | 55 | 250 | 150 | 40 | 33,697 |
| MT-22-10 | 53 | 22 | 610 | 350 | 200 | 60 | 260 | 140 | 45 | 45 |
| MT-26-10 | 70 | 26 | 730 | 450 | 250 | 70 | 280 | 160 | 50 | 71 |
| MT-32-10 | 90 | 32 | 750 | 450 | 260 | 80 | 280 | 160 | 55 | 89,5 |
